Compact Fans (AC)

Compact Fans (AC)

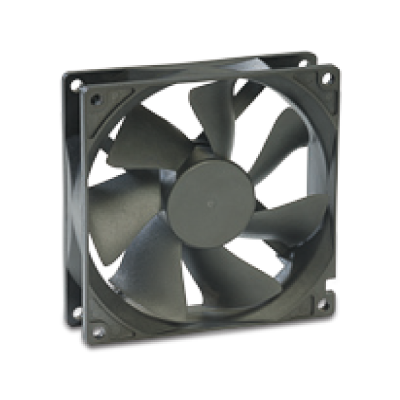

An AC Fan also known as a Panel Cooling Fan, Instrument cooling fan or Equipment fan is a cooling fan that works on an alternating current and expels air along the axis of the fan.

Hicool manufactures these AC Cooling Fans in varying voltages of 24VAC, 115VAC, 230VAC & 415VAC. These cooling fans are available in frequencies of 50 Hz and 60Hz. Hicool’s AC Fans are available in both plastic blade as well as metal blade. The sizes of AC Axial Fans vary from 80 mm to 280 mm. Plastic blade AC fans are generally of sizes 80mm to 220mm. All AC Fan models are available in both ball bearing as well as sleeve bearing. These AC Axial Fans are available in both low speed as well as high speed depending upon the application.

The inimitably designed aluminium die casted venturi along with the plastic impeller compliments these shaded pole motor fans in a way that ensures maximumairflows at high static pressures. With other advantages such as low power consumption, low noise and a vast life span, Hicool’s Compact Fans are widely used. Hicool’s Compact AC fans are endowed with excellent safety features meeting UL, CE, RoHS, CSA, IEC standards.

Catalogue
Swipe to view the data

AC Axial Fans

Model Bearing Voltage
(VAC)
Frequency
(Hz)
Current
(mA)
Speed
(RPM)
Watt
(W)
Air Flow
(CFM)
Static Pressure
(mm H2O)
Noise
(dBA)
80 x 80 x 25 mm
Compact Fans (AC) 8A115HBAC Ball 115 50/60 210/180 2300/2800 14/12 21/25 4/4.8 29/34
8A115HSAC Sleeve 115 50/60 210/180 2300/2800 14/12 21/25 4/4.8 29/34
8A230HBAC Ball 230 50/60 70/60 2300/2800 14/12 21/25 4/4.8 29/34
8A230HSAC Sleeve 230 50/60 70/60 2300/2800 14/12 21/25 4/4.8 29/34
92 x 92 x 25 mm
Compact Fans (AC) 9A115HBAC Ball 115 50/60 210/180 2300/2800 14/14 36/42 5/6 36/38
9A115HSAC Sleeve 115 50/60 210/180 2300/2800 14/14 36/42 5/6 36/38
9A230HBAC Ball 230 50/60 70/60 2300/2800 14/12 36/42 5/6 36/38
9A230HSAC Sleeve 230 50/60 70/60 2300/2800 14/12 36/42 5/6 36/38
120 x 120 x 38 mm
Compact Fans (AC) 12A24HBAC Ball 24 50/60 1000/900 2600/2800 18/17 95/102 8.4/9.4 43/46
12A24HSAC Sleeve 24 50/60 1000/900 2600/2800 18/17 95/102 8.4/9.4 43/46
12A115HBAC Ball 115 50/60 170/145 2600/2800 14/12 95/102 8.4/9.4 43/46
12A115HSAC Sleeve 115 50/60 170/145 2600/2800 14/12 95/102 8.4/9.4 43/46
12A230HBAC Ball 230 50/60 100/90 2600/2800 18/17 95/102 8.4/9.4 43/46
12A230HSAC Sleeve 230 50/60 100/90 2600/2800 18/17 95/102 8.4/9.4 43/46
12A415HBAC Ball 415 50/60 70/60 2600/2800 20/20 95/102 8.4/9.4 43/46
12A415HSAC Sleeve 415 50/60 70/60 2600/2800 20/20 95/102 8.4/9.4 43/46
B12038230H Ball 230 50/60 250 4500 30 243 29.2 64
172Ф x 150 x 51 mm & 172 x 172 x 55 mm
Compact Fans (AC) 17A115HBAC Ball 115 50/60 450/450 2600/2750 41/38 190/235 16/21 52/55
17A115HSAC Sleeve 115 50/60 450/450 2600/2750 41/38 190/235 16/21 52/55
17A230HBAC Ball 230 50/60 250/245 2600/2750 38/37 190/235 16/21 52/55
17A230HSAC Sleeve 230 50/60 250/245 2600/2750 38/37 190/235 16/21 52/55
17A415HBAC Ball 415 50/60 125/125 2600/2750 38/38 190/235 16/21 52/55
17A415HSAC Sleeve 415 50/60 125/125 2600/2750 38/38 190/235 16/21 52/55
220Ф x 60 mm & 220 x 220 x 60 mm
Compact Fans (AC) 22A115HBAC Ball 115 50 550 2300 50 360 23 56
22A115HSAC Sleeve 115 50 550 2300 50 360 23 56
22A230HBAC Ball 230 50 320 2300 50 360 23 56
22A230HSAC Sleeve 230 50 320 2300 50 360 23 56
22A415HBAC Ball 415 50 200 2300 50 360 23 56
22A415HSAC Sleeve 415 50 200 2300 50 360 23 56
Ask for Low Noise versions, call us on +91-22-4142 5555 OR write to us @ inquiry@hicoolfans.com
Specifications subject to change without notice

Applications of an AC Fan

Overheating in computers, electronic components and other machines today is a common occurrence. Overheating leads to malfunctioning of the device and a shorter lifespan. AC fans are used to maintain a desired temperature level in such applications in order to ensure their smooth functioning.

Compact Fans AC are generally used in applications like:
  • Server Racks
  • Network and Telecom
  • Industrial Equipment
  • Opto Electronics
  • Medical Equipment
  • Power Supplies
  • Control Panels
  • Refrigeration equipment
