 Shaded Pole Motors - Q Type

Q Motors


What are Q motors?

Q Motors are 4 pole Shaded Pole Motors.They have a very compact design and are available from 5 Watts to 34 Watts output. These Shaded Pole Motors are designed in a way such that an entire range of impellers i.e. 154mm to 300 mmwith different angles can be fitted to these Q motors of any wattage. Thus making the design of this Shaded Pole Motor very universal.

The sturdy structure along with the high torque and low noise level make Hicool Q Motors laudable. Hicool provides various accessories for the Q motor like Aluminium/Plastic Blades of different diameters, Brackets, Wall Rings, Basket Grill, Ventury Frame etc.


Dimensions of a Q Motor

Dimensions (mm)

Model

A

B

C

D

E

83 A 230 SAC-5

13

13

44

79



83 A 230 SAC-7

20

13

44

85



83 A 230 SAC-10

20

13

44

85



83 A 230 SAC-16

25

14

45

92



83 A 230 SAC-18

30

17

48

101

21

83 A 230 SAC-25

40

18

49

112

31

83 A 230 SAC-34

45

22

53

121

36


Specifications

Model

Poles

Voltage (VAC)

Frequency
(Hz)

Input Watt

Output Watt

Speed (RPM)

Fan Blade

Rotation

83 A 230 SAC-5

4

230

50Hz

30

5

1300

200

CCW

83 A 230 SAC-7

4

230

50Hz

35

7

1300

230

CCW

83 A 230 SAC-10

4

230

50Hz

45

10

1300

230

CCW

83 A 230 SAC-16

4

230

50Hz

50

16

1300

254

CCW

83 A 230 SAC-18

4

230

50Hz

70

18

1300

254

CCW

83 A 230 SAC-25

4

230

50Hz

90

25

1300

300

CCW

83 A 230 SAC-34

4

230

50Hz

100

34

1300

300

CCW

Specifications subject to change without notice




Accessories of a Q Motor

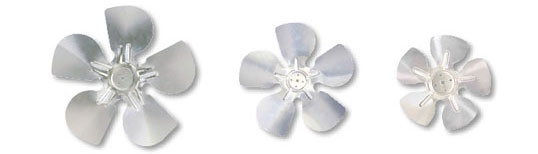

Aluminium Blade Accessories for Q Motor
Aluminium Blades(sucking & blowing) available in dia 154,172,200,230,254&300mm.Pitch available from 190 upto 340

Ventury Frame Motor Accessories for Q Motor
Ventury Frame Motor

Bracket Accessories for Q Motor
Bracket

Wall Ring Accessories for Q Motor
Wall Ring

Basket Grill Accessories for Q Motor
Basket Grill




Applications of Q Motors:

A Q type Shaded Pole Motor has applications in:

  • Visi Coolers
  • Refrigerators
  • Deep Freezers
  • Chest Coolers
  • Display Units
  • Condensing Cooling
